Version: 5.x

Deep linking

In this guide we will set up our app to handle external URIs.

Deep-link integration

To handle incoming links, we need to handle 2 scenarios:

  1. If the app wasn't previously open, we need to set the initial state based on the link
  2. If the app was already open, we need to update the state to reflect the incoming link

To handle a deep link, we need to translate it to a valid navigation state. The library exports a getStateFromPath utility to convert a URL to a state object.

For example, the path /rooms/chat?user=jane will be translated to a state object like this:

{
routes: [
{
name: 'rooms',
state: {
routes: [
{
name: 'chat',
params: { user: 'jane' },
},
],
},
},
],
}

The useLinking hook makes it easier to handle incoming links:

import { NavigationContainer, useLinking } from '@react-navigation/native';
function App() {
const ref = React.useRef();
const { getInitialState } = useLinking(ref, {
prefixes: ['https://mychat.com', 'mychat://'],
});
const [isReady, setIsReady] = React.useState(false);
const [initialState, setInitialState] = React.useState();
React.useEffect(() => {
Promise.race([
getInitialState(),
new Promise(resolve =>
// Timeout in 150ms if `getInitialState` doesn't resolve
// Workaround for https://github.com/facebook/react-native/issues/25675
setTimeout(resolve, 150)
),
])
.catch(e => {
console.error(e);
})
.then(state => {
if (state !== undefined) {
setInitialState(state);
}
setIsReady(true);
});
}, [getInitialState]);
if (!isReady) {
return null;
}
return (
<NavigationContainer initialState={initialState} ref={ref}>
{/* content */}
</NavigationContainer>
);
}

Note: The getInitialState function uses React Native's Linking.getInitialUrl() under the hood. Currently there seems to be bug (facebook/react-native#25675) which results in it never resolving on Android.

Often, directly translating path segments to route names may not be the expected behavior. For example, you might want to parse the path /feed/latest to something like:

{
routes: [
{
name: 'Chat',
params: {
sort: 'latest',
},
},
];
}

You can specify a separate config option to control how the deep link is parsed to suit your needs.

const { getInitialState } = useLinking(ref, {
prefixes: ['https://mychat.com', 'mychat://'],
config: {
Chat: 'feed/:sort',
},
});

Here Chat is the name of the screen that handles this URL. The navigator will need to have a Chat screen which handles a sort param for the route:

You can also customize how params are parsed, for example, if you parse the path /item/42 as item/:id, the param id will be parsed as string by default. But you can customize it by passing a function:

{
Catalog: {
path: 'item/:id',
parse: {
id: Number,
},
},
}

This will result in something like:

const state = {
routes: [
{
name: 'Catalog',
params: { id: 42 },
},
],
};

It's important to note that the state object must match the hierarchy of nested navigators. Otherwise the state will be discarded.

Sometimes we'll have the target navigator nested in other navigators which aren't part of the deep link. For example, let's say our navigation structure looks this:

function Home() {
return (
<Tab.Navigator>
<Tab.Screen name="Profile" component={Profile} />
<Tab.Screen name="Notifications" component={Notifications} />
</Tab.Navigator>
);
}
function App() {
return (
<Stack.Navigator>
<Stack.Screen name="Home" component={Home} />
<Stack.Screen name="Settings" component={Settings} />
</Stack.Navigator>
);
}

Here we have a stack navigator in root, and inside the Home screen of the root stack, we have a tab navigator with various screens. With this structure, let's say we want the path /users/:id to go to the Profile screen. We can express the nested config like so:

{
Home: {
screens: {
Profile: 'users/:id',
},
},
}

In this config, we specify that the Profile screen should be resolved for the users/:id pattern and it's nested inside the Home screen. Then parsing users/jane will result in the following state object:

const state = {
routes: [
{
name: 'Home',
state: {
routes: [
{
name: 'Profile',
params: { id: 'jane' },
},
],
},
},
],
};

Sometimes we want to ensure that a certain screen will always be present for the navigator in the state object. We can achieve it by specifying the initialRouteName property for that navigator in the config. For the above example, if we want the Notifications screen to be the initial route in Home tab navigator, we should specify such config (Notifications screen needn't be mentioned in screens property):

{
Home: {
initialRouteName: 'Notifications',
screens: {
Profile: 'users/:id',
Notifications: 'notify/:user',
},
},
};

Then, the path /users/42 will resolve to the following state object:

const state = {
routes: [
{
name: 'Home',
state: {
index: 1,
routes: [
{
name: 'Notifications',
},
{
name: 'Profile',
params: { id: 'jane' },
},
],
},
},
],
};

Notice that we can't pass any params to the Notifications screen if it isn't explicitly mentioned in the URL string, so the screen should implement handling lack of these params with e.g. providing default ones.

For some advanced cases, specifying the mapping may not be sufficient. You can implement your custom parser to address these cases using the getStateFromPath option:

const { getInitialState } = useLinking(ref, {
prefixes: ['https://mychat.com', 'mychat://'],
config: {
Chat: 'feed/:sort',
},
getStateFromPath: (path, options) => {
// Implement your custom parser and return the navigation state here
},
});

Set up with Expo projects

First, you will want to specify a URL scheme for your app. This corresponds to the string before :// in a URL, so if your scheme is mychat then a link to your app would be mychat://. The scheme only applies to standalone apps and you need to re-build the standalone app for the change to take effect. In the Expo client app you can deep link using exp://ADDRESS:PORT where ADDRESS is often 127.0.0.1 and PORT is often 19000 - the URL is printed when you run expo start. If you want to test with your custom scheme you will need to run expo build:ios -t simulator or expo build:android and install the resulting binaries in your emulators. You can register for a scheme in your app.json by adding a string under the scheme key:

{
"expo": {
"scheme": "mychat"
}
}

URI Prefix

Next, let's configure our navigation container to extract the path from the app's incoming URI.

import { Linking } from 'expo';
const prefix = Linking.makeUrl('/');
function App() {
const ref = React.useRef();
const { getInitialState } = useLinking(ref, {
prefixes: [prefix],
});
const [isReady, setIsReady] = React.useState(false);
const [initialState, setInitialState] = React.useState();
React.useEffect(() => {
getInitialState()
.catch(() => {})
.then(state => {
if (state !== undefined) {
setInitialState(state);
}
setIsReady(true);
});
}, [getInitialState]);
if (!isReady) {
return null;
}
return (
<NavigationContainer initialState={initialState} ref={ref}>
{/* content */}
</NavigationContainer>
);
}

The reason that is necessary to use Expo.Linking.makeUrl is that the scheme will differ depending on whether you're in the client app or in a standalone app.

Example App

Overview

In the example app, we will use the Expo managed workflow. The guide will focus on creating the deep linking configuration and not on creating the components themselves, but you can always check the full implementation in the github repo.

Getting Started

In the beginning, we need to create a structure for our application. To keep it simple, the main navigator will be bottom-tabs navigator with two screens. Its first screen will be a simple stack navigator, called HomeStack, with two screens: Home and Profile, and the second tabs screen will be just a simple one without any nested navigators, called Settings. After creating the app's structure, we can prepare a deep linking config object, which will statically recreate the structure with a URL path matching every state we would like to achieve. In our example, it would perhaps look like this:

config = {
HomeStack: 'stack',
Home: 'home',
Profile: 'user',
Settings: 'settings',
};

Then, to get to Home screen in HomeStack, the URL would look like /stack/home, and for Settings screen, it would be /settings. For such an app, without any parameters added to the routes and a very simple structure, it doesn't make too much sense to explicitly create config. If it wasn't present, the routes would be parsed by their names, so the first URL would have to be /HomeStack/Home and the second one /Settings.

But what if we want to have parameters in the URL, like the name of the person, whose profile we are visiting in the Profile screen? Or maybe we would like to define a screen that will be always present in the state for the HomeStack navigator? With properly defined config it can all be done easily, so let's do this!

Defining better config

Even for such a simple configuration, we can make some optimization. With the above config, in order to get to Home or Profile screen, we need to pass two "elements" to the URL. We can reduce it to only one by introducing nested navigators in our config. The syntax looks like that:

config = {
HomeStack: {
path: 'stack',
screens: {
Home: 'home',
Profile: 'user',
},
},
Settings: 'settings',
};

As we can see, Home and Profile are now nested in the screens property of HomeStack. This means that when you pass the /home URL, it will be resolved to a HomeStack->Home state object (similarly for /user it would be HomeStack->Profile). HomeStack's value became an object and if we want to navigate straight to it, we have to provide it with the path property. The good thing about such config is that it can go as deep as you want, e.g. if Home was a navigator, you could make it an object with screens property, and put more screens or navigators inside it, making the URL string much shorter.

What if we wanted a specific screen to be always present in the state object for a navigator? For example, if we had a URL that would open Home screen, but we would like to be able to navigate to Profile from it by using navigation's navigation.goBack() method. It is possible by defining initialRouteName for a navigator. It would look like this then:

config = {
HomeStack: {
path: 'stack',
initialRouteName: 'Profile',
screens: {
Home: 'home',
Profile: 'user',
},
},
Settings: 'settings',
};

Passing parameters to screens

A common case in having navigation in the application is passing parameters to the screens while navigating between them. In our example, we want the Profile screen to have the id param. While in app, we pass that param as a property of an object in the second argument of navigation.navigate() function. If we want to pass such param while opening the screen through deep linking, we can achieve it by extending the config for the screen. For id in Profile, it would be Profile: 'user/:id'. / is the separator between the path and each of the parameters. Passing URL user/Wojciech would resolve to Profile screen with a 'Wojciech' as a value of the id param in the screen params. It can be extracted from route.params.id in the screen component.

Sometimes we want to parse the param in a specific way. By default, all params are parsed to the screen as strings, but we can define a parse property, which will handle parsing. If we wanted to resolve user/Wojciech/22 to user's age as a number and a modified id, we could make Profile's config look like this:

Profile: {
path: 'user/:id/:age',
parse: {
id: id => `there, ${id}`,
age: Number,
},
}

Similarly to web URLs, there is also an option of using query params, which can only be applied to the deepest screen in the URL. To apply it to our config, the URL would look like this: user?id=Wojciech&age=22 and config would not include params in the path property:

Profile: {
path: 'user',
parse: {
id: id => `there, ${id}`,
age: Number,
},
}

Specific configuration

Here we will mention some of the consequences of using nested navigators in the config.

  1. Using initialRouteName makes the screen always appear in the state of a navigator. It makes it impossible to pass params to that screen through the URL unless the screen is explicitly mentioned in it. It is then reasonable for that screen not to take any params or to provide default ones.

  2. Having multiple screens of a nested navigator present in the state object is not possible through a one-part URL string. We also cannot provide a URL like (for the above configuration) /user/home, because it would be resolved to HomeStack->Profile->HomeStack->Home, If we want to get rid of the second HomeStack, we can provide an explicit config for the Home screen in the first level of config nesting (remember to provide a different path string for each occurrence of a screen in the config):

    config = {
    HomeStack: {
    path: 'stack',
    initialRouteName: 'Profile',
    screens: {
    Home: 'home',
    Profile: 'user',
    },
    },
    Settings: 'settings',
    Home: 'first',
    };

    Then /user/first will resolve to HomeStack->Profile->Home.

    We can also make the config not include nested navigator, which will make the URL even longer, but maybe a bit less confusing.

    config = {
    HomeStack: 'stack',
    Home: 'home',
    Profile: 'user',
    Settings: 'settings',
    };

    Then /stack/user/home will resolve to HomeStack->Profile->Home.

  3. Usage of the nested navigators disables the option of passing any params to the routes in the nested state, except for the last one. It shouldn't be a problem, because only the last part of the nested config should be a screen, while rest being navigators, which don't take any params.

  4. There is an option to retrieve the URL path that would lead to the present state of navigation by calling getPathFromState(). The function takes the current navigation state as the first argument (it can be retrieved by using useNavigationState() hook) and optionally the config object as the second argument. The navigation in the application shouldn't typically be this complicated for the user to use this function.

Test deep linking on iOS

To test the URI on the simulator in the Expo client app, run the following:

xcrun simctl openurl booted [ put your URI prefix in here ]
# for example
xcrun simctl openurl booted exp://127.0.0.1:19000/--/chat/jane

Test deep linking on Android

To test the intent handling in the Expo client app on Android, run the following:

adb shell am start -W -a android.intent.action.VIEW -d "[ put your URI prefix in here ]" host.exp.exponent
# for example
adb shell am start -W -a android.intent.action.VIEW -d "exp://127.0.0.1:19000/--/chat/jane" host.exp.exponent

Change host.exp.exponent to your app package name if you are testig on a standalone app.

Read the Expo linking guide for more information about how to configure linking in projects built with Expo.

Set up with react-native init projects

iOS

Let's configure the native iOS app to open based on the mychat:// URI scheme.

You'll need to link RCTLinking to your project by following the steps described here. To be able to listen to incoming app links, you'll need to add the following lines to SimpleApp/ios/SimpleApp/AppDelegate.m.

If you're targeting iOS 9.x or newer:

// Add the header at the top of the file:
#import <React/RCTLinkingManager.h>
// Add this above `@end`:
- (BOOL)application:(UIApplication *)application
openURL:(NSURL *)url
options:(NSDictionary<UIApplicationOpenURLOptionsKey,id> *)options
{
return [RCTLinkingManager application:application openURL:url options:options];
}

If you're targeting iOS 8.x or older, you can use the following code instead:

// Add the header at the top of the file:
#import <React/RCTLinkingManager.h>
// Add this above `@end`:
- (BOOL)application:(UIApplication *)application openURL:(NSURL *)url
sourceApplication:(NSString *)sourceApplication annotation:(id)annotation
{
return [RCTLinkingManager application:application openURL:url
sourceApplication:sourceApplication annotation:annotation];
}

If your app is using Universal Links, you'll need to add the following code as well:

// Add this above `@end`:
- (BOOL)application:(UIApplication *)application continueUserActivity:(nonnull NSUserActivity *)userActivity
restorationHandler:(nonnull void (^)(NSArray<id<UIUserActivityRestoring>> * _Nullable))restorationHandler
{
return [RCTLinkingManager application:application
continueUserActivity:userActivity
restorationHandler:restorationHandler];
}

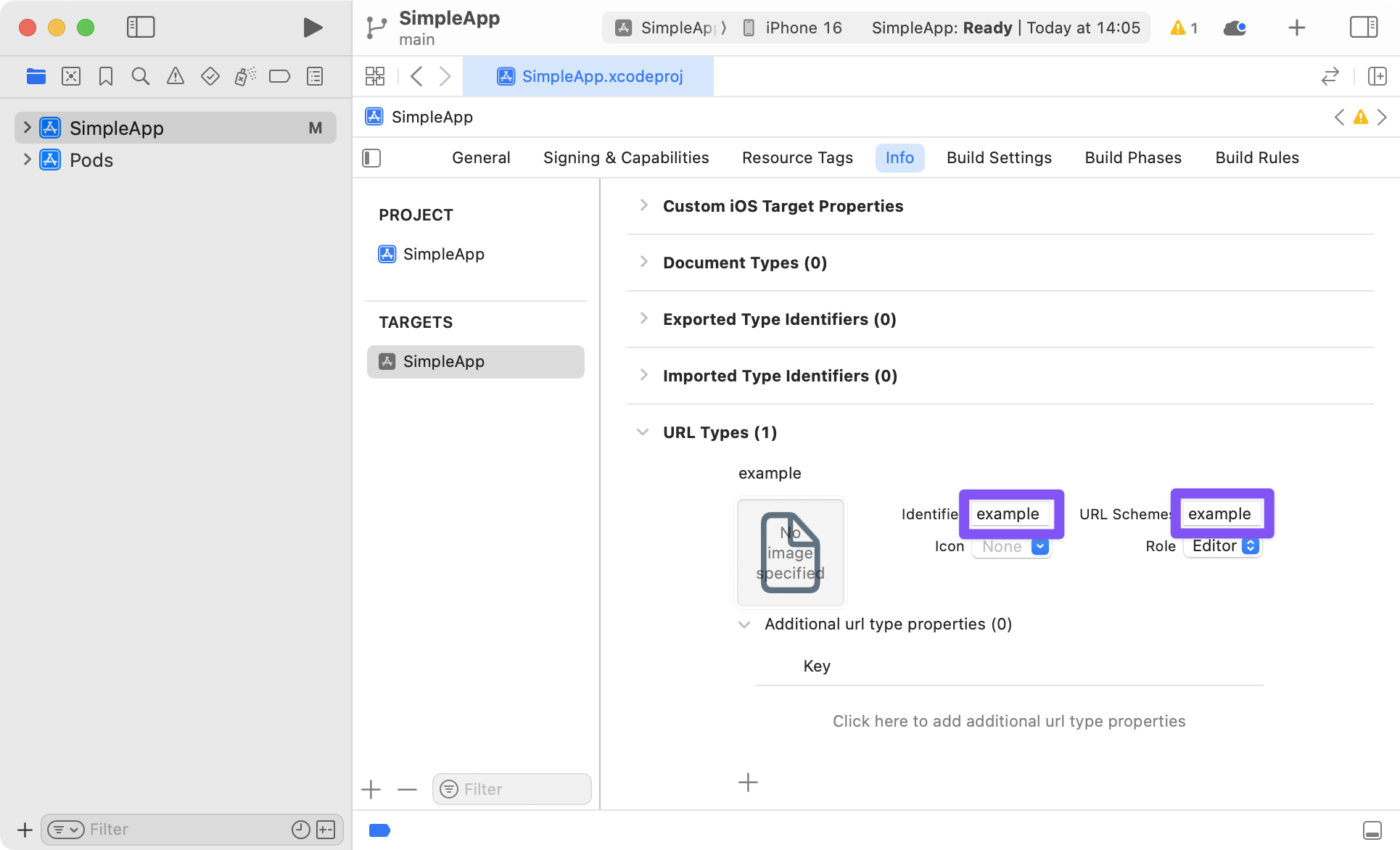

In Xcode, open the project at SimpleApp/ios/SimpleApp.xcodeproj. Select the project in sidebar and navigate to the info tab. Scroll down to "URL Types" and add one. In the new URL type, set the identifier and the URL scheme to your desired URL scheme.

Xcode project info URL types with mychat added

Now you can press play in Xcode, or re-build on the command line:

react-native run-ios

To test the URI on the simulator, run the following:

xcrun simctl openurl booted mychat://chat/jane

To test the URI on a real device, open Safari and type mychat://chat/jane.

Android

To configure the external linking in Android, you can create a new intent in the manifest.

In SimpleApp/android/app/src/main/AndroidManifest.xml, do these following adjustments:

  1. Set launchMode of MainActivity to singleTask in order to receive intent on existing MainActivity. It is useful if you want to perform navigation using deep link you have been registered - details
  2. Add the new intent-filter inside the MainActivity entry with a VIEW type action:
<activity
android:name=".MainActivity"
android:launchMode="singleTask">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
<intent-filter>
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.DEFAULT" />
<category android:name="android.intent.category.BROWSABLE" />
<data android:scheme="mychat" />
</intent-filter>
</activity>

Now, re-install the app:

react-native run-android

To test the intent handling in Android, run the following:

adb shell am start -W -a android.intent.action.VIEW -d "mychat://chat/jane" com.simpleapp

Hybrid iOS Applications (Skip for RN only projects)

If you're using React Navigation within a hybrid app - an iOS app that has both Swift/ObjC and React Native parts - you may be missing the RCTLinkingIOS subspec in your Podfile, which is installed by default in new RN projects. To add this, ensure your Podfile looks like the following:

pod 'React', :path => '../node_modules/react-native', :subspecs => [
. . . // other subspecs
'RCTLinkingIOS',
. . .
]
